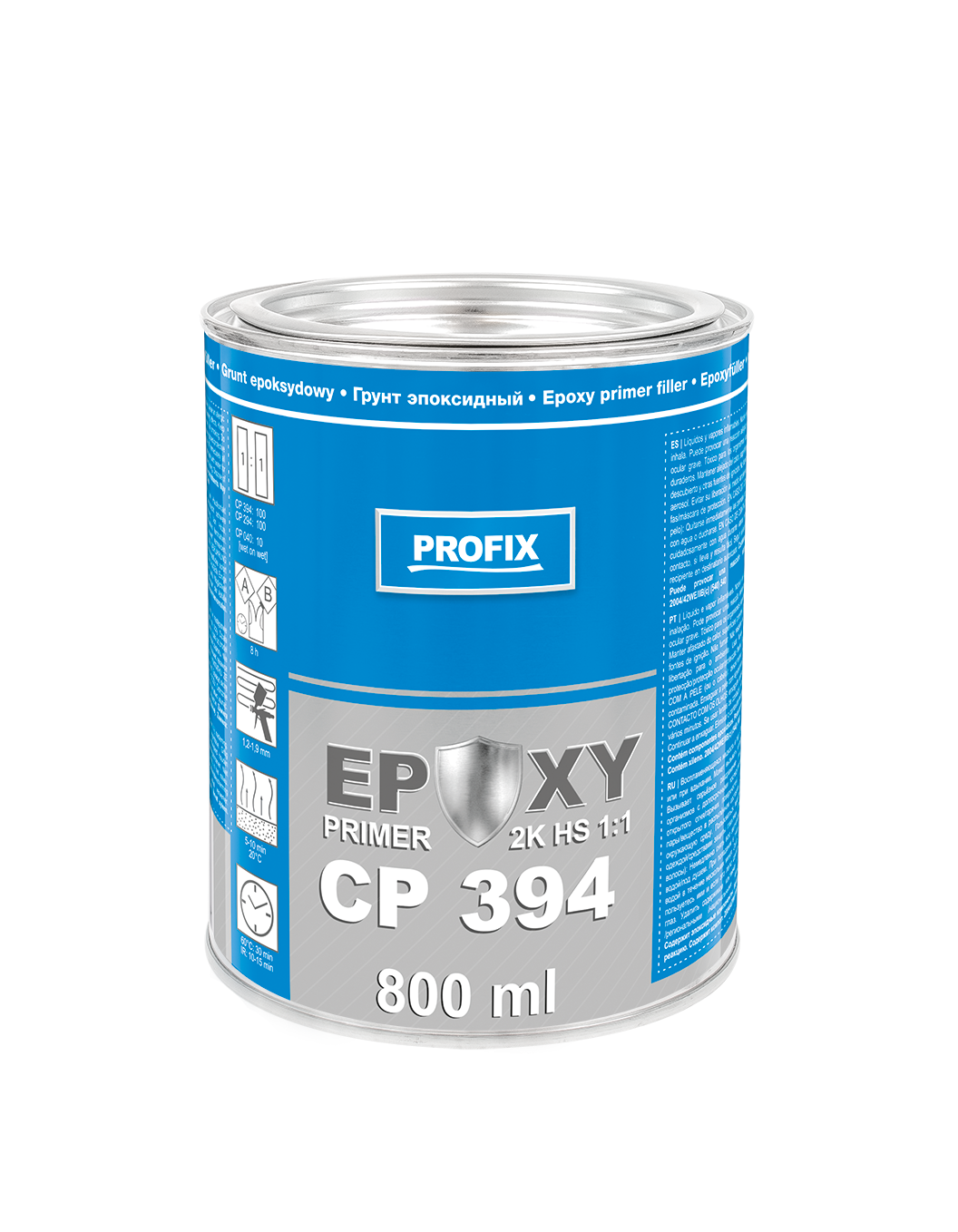

CP 394

CP 394

Epoxy primer 2K HS 1:1

Due to its premium-grade resins, the CP 394 primer delivers exceptional corrosion protection for steel surfaces. Notably, it exhibits excellent adhesion across diverse substrates, including steel, galvanized steel, aluminum, glass reinforced plastic, and existing paint coatings. Functioning both as a robust covering and filling primer, CP 394 also supports wet-on-wet application. Available in 0.8-Litre tins, it offers versatile application options and reliable protective properties.

Available colors:
  • Product benefits: Very good adhesion
  • Spill: 0.80 l

Specification

Industry use

Agricultural and construction machinery
VERY GOOD ADHESION
Forklift trucks and hoists
INSULATING PROPERTIES
Commercial vehicles and machinery
WET-ON-WET APPLICATION
Buses and truck tractors
CORROSION PROTECTION
Technical machinery and equipment
SUPERB COAT TIGHTNESS
WET-ON-WET
One coat, next coat application, film thickness 20-30 μm
SPRAY VISCOSITY
16-22 sec. DIN Flow Cup 4 mm
RECOMMENDED SIZES FOR PAINT STRAINER
190 μm (wet-on-wet 125 μm)
PAINT EFFICIENCY
8-10 m2/l
POT LIFE
1 hrs
DRY FILM THICKNESS
- 1 coat - 20-40 μm - 2 coats - 40-80 μm
WET SANDING
P600->P800->P1000
DRY SANDING
P280->P400
MINIMUM SHELF LIFE
CP 394: 24 months in originally sealed packaging CP 294: 12 months in originally sealed packaging
VOC
2004/42/WE IIB(c) (540) 540

Application

SUBSTRATE PREPARATION
Abrade substrate using a red P300-
400 abrasive pad by hand for steel,
galvanised steel or grey abrasive pad
for aluminium. Alternatively, P180-P240
sanding disc using orbital sander. Remove
dust particles before cleaning substrate
with CP 015. After the substrate is clean
and dry apply CP 394 with the required
number of layers, taking note of the
recommended evaporation time between
coats. Bake or airdry before progressing
to the next step of the process
MIXING RATIO
1:1
100 parts of CP 394
100 parts of CP 294 hardener
The wet-on-wet method requires
10-30% of thinner
CP 040/ CP 070/ CP 055/ CP 075
SPRAY GUN SETTINGS
Nozzle 1.6-1.8 mm;
Operating pressure: HVLP/RP 1.8-2.0 bar
Wet-on-wet method:
Nozzle size HVLP/RP 1.3-1.4 mm;
Operating pressure: 1.8-2.0 bar
APPLICATION
2 full coats (filling primer)
1 full coat including 10-30% thinner
(insulator)
EVAPORATION TIME AFTER APPLICATION
5-10 min. after priming at
20°C and 65% relative humidity
Evaporation continues until a matt
surface is visible
DRYING
Drying times at 20°C and
65% relative humidity:
- dust dryness: 10 min (2 coats)
- before sanding: 3 hrs
Drying times at 60°C and
65% relative humidity:
- before sanding 30 min
