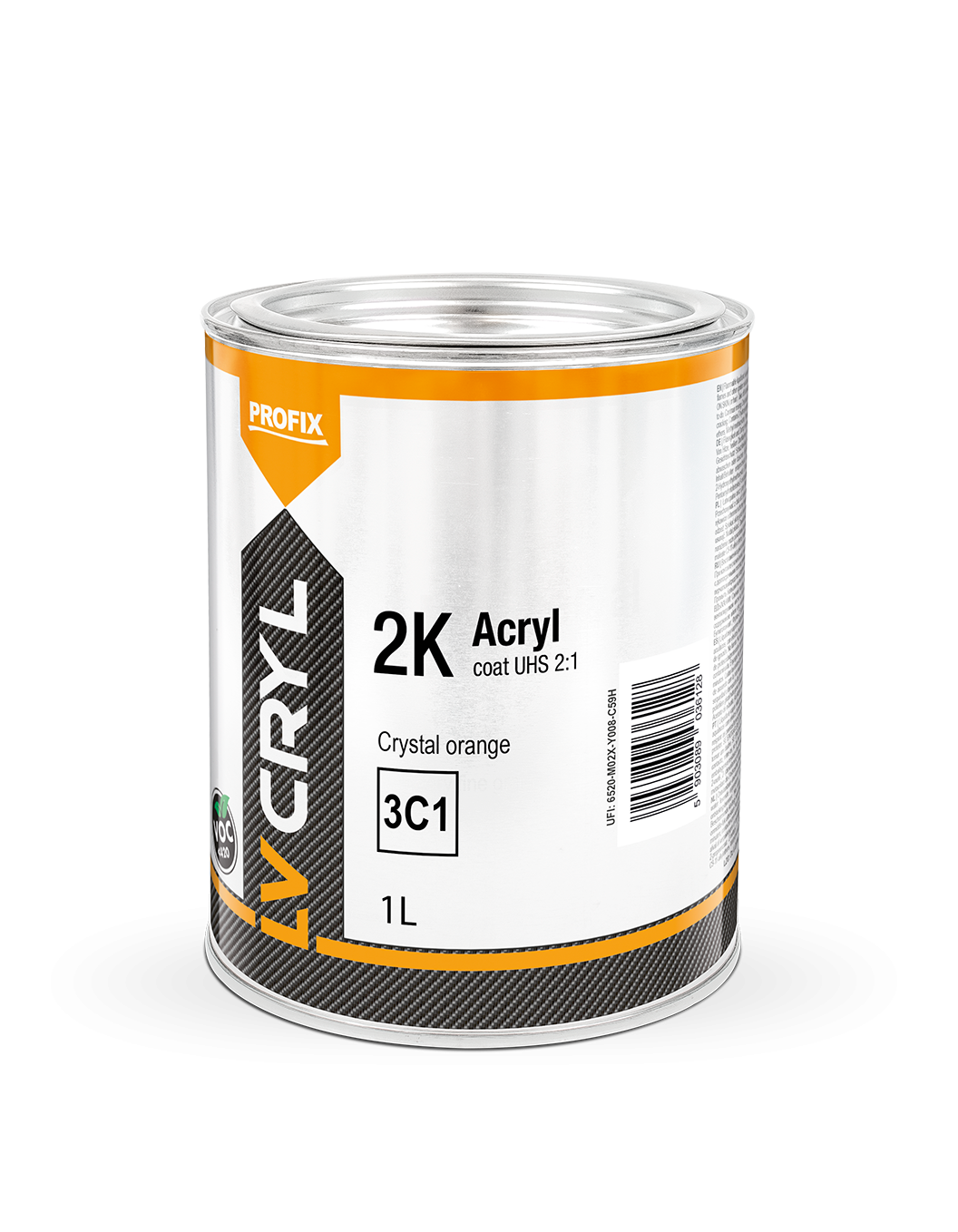

3C1

Crystal orange

Colour 3C1 clear orange from the LV Cryl system is an intense and transparent orange shade that adds unique character and definition to vehicles. Thanks to its clear formula, it is ideal for accentuating details or creating striking finishes. The product has high covering power and excellent adhesion to a variety of substrates for an even, durable finish. The acrylic resin-based formula provides deep gloss and weather resistance. Colour 3C1 is an excellent choice for projects that require intensity and transparency in a striking orange shade.

Available colors:

Product benefits: Perfect for renovation Covering power UHS resins Wide selection of toners High gloss and colour intensity
Spill: 1.00l

more information on this product

Specification

Application

Specification

Industry use

SPRAY VISCOSITY

17-18 sec. DIN Flow Cup 4 mm

RECOMMENDED SIZES FOR PAINT STRAINER

125-190 μm

PAINT EFFICIENCY

9-10 m2/l

POT LIFE

1 hrs

DRY FILM THICKNESS

1 coat - 25-30 μm 2 coats - 50-60 μm

MINIMUM SHELF LIFE

LV CRYL: 36 months in originally sealed packaging C85H/ C86H: 12 months in originally sealed packaging

VOC

2004/42/WE/IIB(d)(420) 420

Application

SUBSTRATE PREPARATION

Once the suitable primer coat has
been abraded, clean using silicone
remover CP 015 in preparation to
apply direct gloss coat

MIXING RATIO

2:1
100 parts of LV CRYL
50 parts of C85H
10-20% CP 040/ CP 070/ CP 055/ CP 075

SPRAY GUN SETTINGS

Nozzle size: 1.2-1.4 mm;
Operating pressure: HVLP/RP 1.8-2.0 bar

APPLICATION

2 full coats leaving time for
evaporation between coats

EVAPORATION TIME AFTER APPLICATION

5-10 min after coating at
20°C and 65% relative humidity

DRYING

Drying times at 20°C and
65% relative humidity:
- dust dryness: 15 min
- for assembly: 5 hrs
- thoroughly: 12 hrs
Drying times at 40°C and
65% relative humidity:
- for assembly: 1 hrs
Drying times at 60°C and
65% relative humidity:
- for assembly: 30 min
