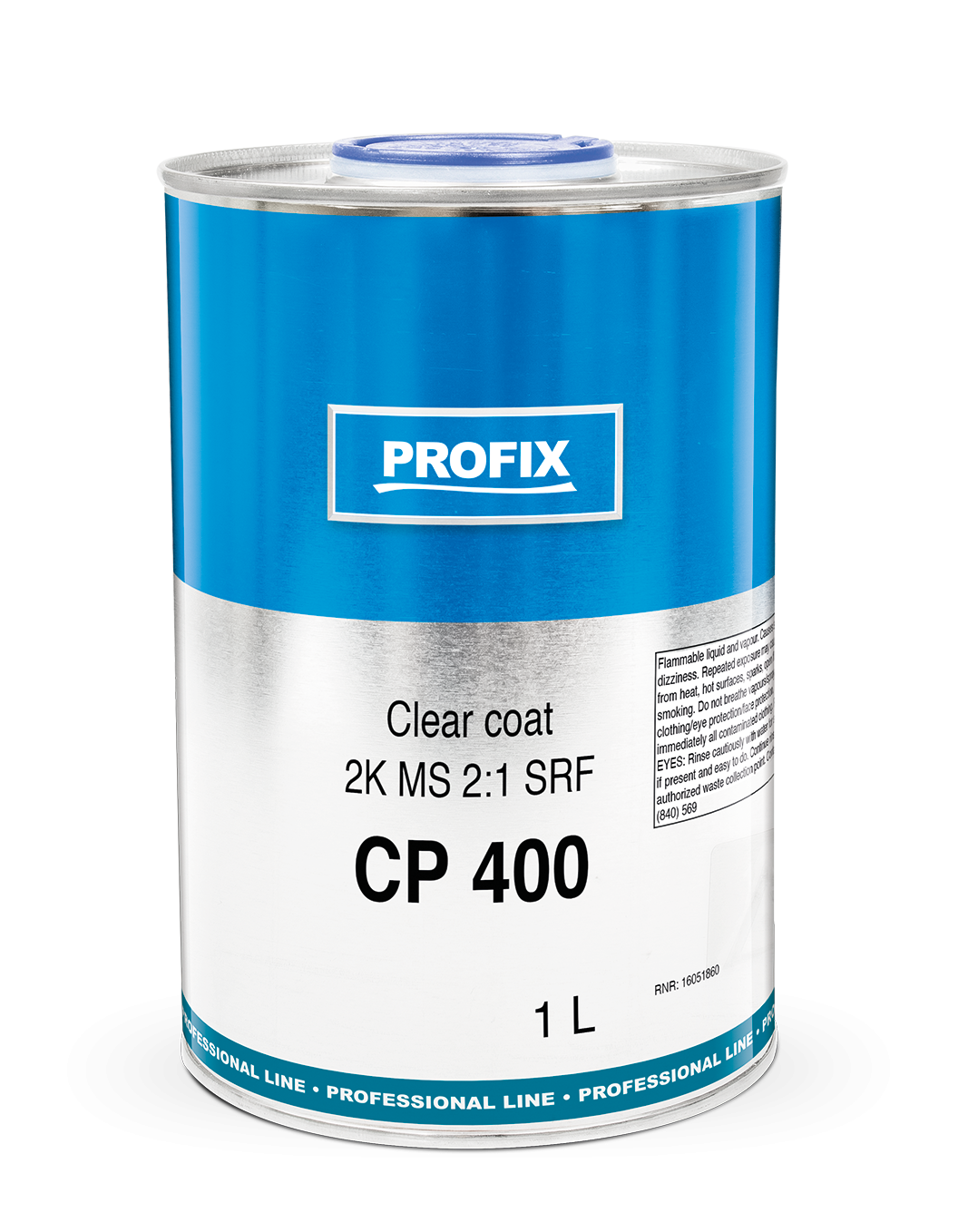

CP 400

Clearcoat 2K MS 2:1

CP 400, a two-component clearcoat, has been expertly crafted to deliver a flawless, scratch-resistant finish. Impressively, this versatile solution achieves a high-gloss appearance with just two coats, offering exceptional coverage for surfaces of varying sizes. Users can effortlessly tailor viscosity to their preferences by incorporating CP 040 thinner, with a recommended ratio of up to 10%.

Product benefits: Excellent paint flow High paint efficiency Scratch resistant Viscosity control by adding thinner
Spill: 1.00 l / 5.00 l

more information on this product

Specification

Application

Specification

Industry use

SCRATCHRESISTANT

EFFICIENT

VISCOSITY CONTROL BY ADDING THINNER

EASY TO USE

SPRAY VISCOSITY

18-22 sec. DIN Flow Cup 4 mm

RECOMMENDED SIZES FOR PAINT STRAINER

125-190 μm

PAINT EFFICIENCY

10-12 m2/l

POT LIFE

6 hrs

DRY FILM THICKNESS

1 coat - 10-15 μm

Abrade with P1500-P2500 range. The polishing can then be carried out with the Profix polishing system

MINIMUM SHELF LIFE

CP 400: 24 months in originally sealed packaging CP 282/ CP 285/ CP 286: 12 months in originally sealed packaging

VOC

2004/42/WE IIB(c) (540) 500

Application

SUBSTRATE PREPARATION

Ensure basecoat surface is clean
using antistatic cloth before
applying clearcoat for a flawless
finish

MIXING RATIO

2:1
100 parts of CP 400
50 parts of CP 282/ CP 285/ CP 286
add 10% of thinner CP 040/
CP 070/ CP 055/ CP 075

SPRAY GUN SETTINGS

Nozzle size: 1.2-1.4 mm;
Operating pressure: HVLP/RP 1.8-2.0 bar

APPLICATION

2-3 full coats

EVAPORATION TIME AFTER APPLICATION

5-10 min after coating at 20°C
and 65% relative humidity

DRYING

Drying times at 20°C and
65% relative humidity:
- dust dryness: 15 min
- non-tacking: 40 min
- for assembly: 5 hrs
- thoroughly: 12 hrs
Drying times at 60°C and
65% relative humidity:
- for assembly: 30 min
