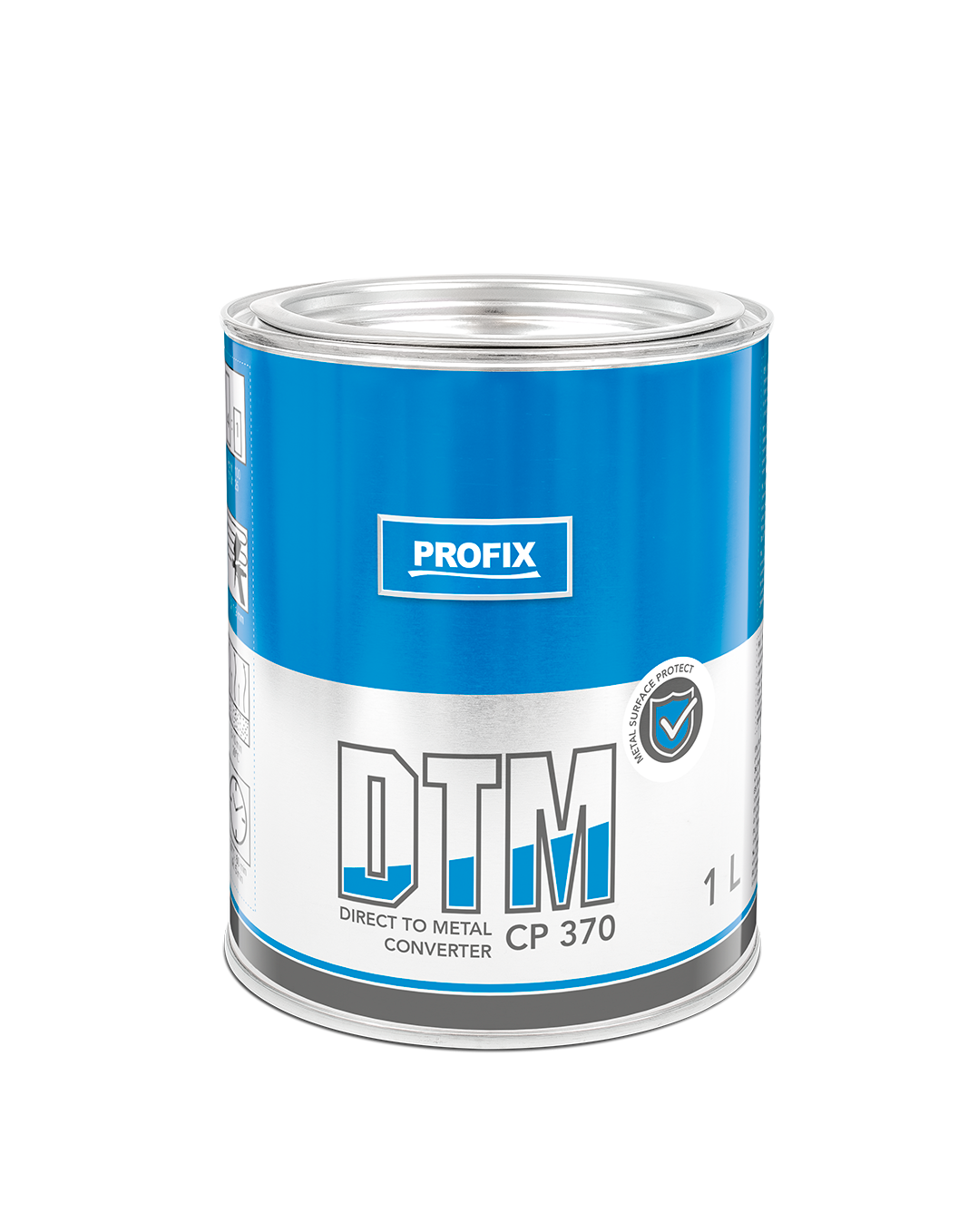

CP 370

Direct to metal converter of acrylic mixing systems

DTM is used in combination with Profix acrylic mixing systems to create a product that can be applied directly. to non-primed metal surfaces. The combination of the ACRYL / LV CRYL system with CP 370 DTM creates a corrosion-resistant coating. Such mixture can be applied in one or two coats to suitably prepared substrates. Key properties include excellent adhesion and corrosion protection on all metal substrates such as steel, aluminium and galvanised steel. Its high mechanical resistance makes the topcoat a perfect selection for cost-effective industrial applications.

  • Product benefits: Smooth surface Easy application High paint efficiency Uniform surface Various degrees of satin effect
  • Spill: 1.00 l / 3.50 l
more information on this product
Specification
Application
Related products
MSDS

Specification

Industry use

Agricultural and construction machinery
VARIOUS DEGREES OF SATIN EFFECT
Forklift trucks and hoists
HIGH RESISTANCE
Commercial vehicles and machinery
SMOOTH SURFACE
Buses and truck tractors
UNIFORM SURFACE
Technical machinery and equipment
EASY APPLICATION
RECOMMENDED SIZES FOR PAINT STRAINER
125-190 μm
PAINT EFFICIENCY
~7-9 m2/L
POT LIFE
1.5 hrs
DRY FILM THICKNESS
1 coat ~30 μm
MINIMUM SHELF LIFE
CP 370: 24 months in originally sealed packaging CP 282/ CP 285/ CP 286: 12 months in originally sealed packaging

Application

SUBSTRATE PREPARATION
The surface is degreased with CP 015.
The primer is then applied to the surface
sanded with P320-P400 abrasives.
Can be applied directly to bare metal
surfaces
MIXING RATIO
Preparation of ACRYL with CP 370
Semi-satin surface
70 parts parts of ACRYL
30 parts parts of CP 370
Satin surface
50 parts parts of ACRYL
50 parts parts of CP 370
Ready-to-spray mixture
100 parts parts of ACRYL+CP 370 mixture
25 parts parts of hardener CP 285
Alternative hardeners CP 282 (fast) < 15°C
CP 286 (slow) > 25°C
15-25 parts by vol. of thinner
CP 040/ 070/ 075
SPRAY GUN SETTINGS
Nozzle size: 1.4-1.6 mm;
Operating pressure: HVLP/RP 1.8-2.0 bar
APPLICATION
2 full coats allowing flash-off
between coats
EVAPORATION TIME AFTER APPLICATION
5-10 min after coating at
20°C and 65% relative humidity
DRYING
Drying times at 20°C and
65% relative humidity:
- dust dryness: 10 min
- for assembly: 5 hrs
- thoroughly: 10 hrs
Drying times at 60°C and
65% relative humidity:
- for assembly: 30 min

Related products

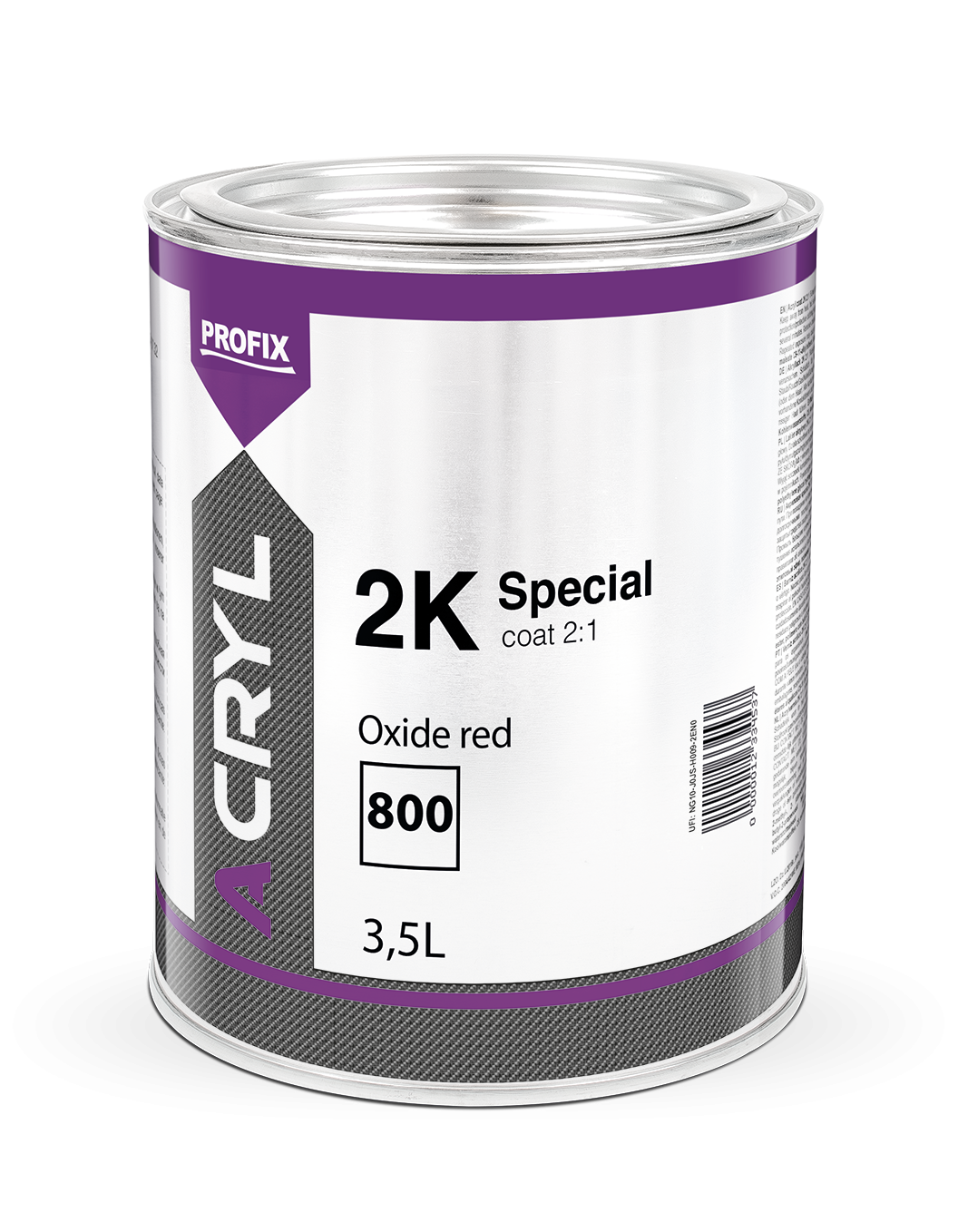

800

800 - Oxide red

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
705

705 - Special black

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
703

703 - Medium black

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
702

702 - Mix black

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
700

700 - Deep black

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
662

662 - Transparent yellow-green

  • Performance: 8 m2/l
  • Spill: 1.00 l
  • Available colors:
602

602 - Blue green

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:

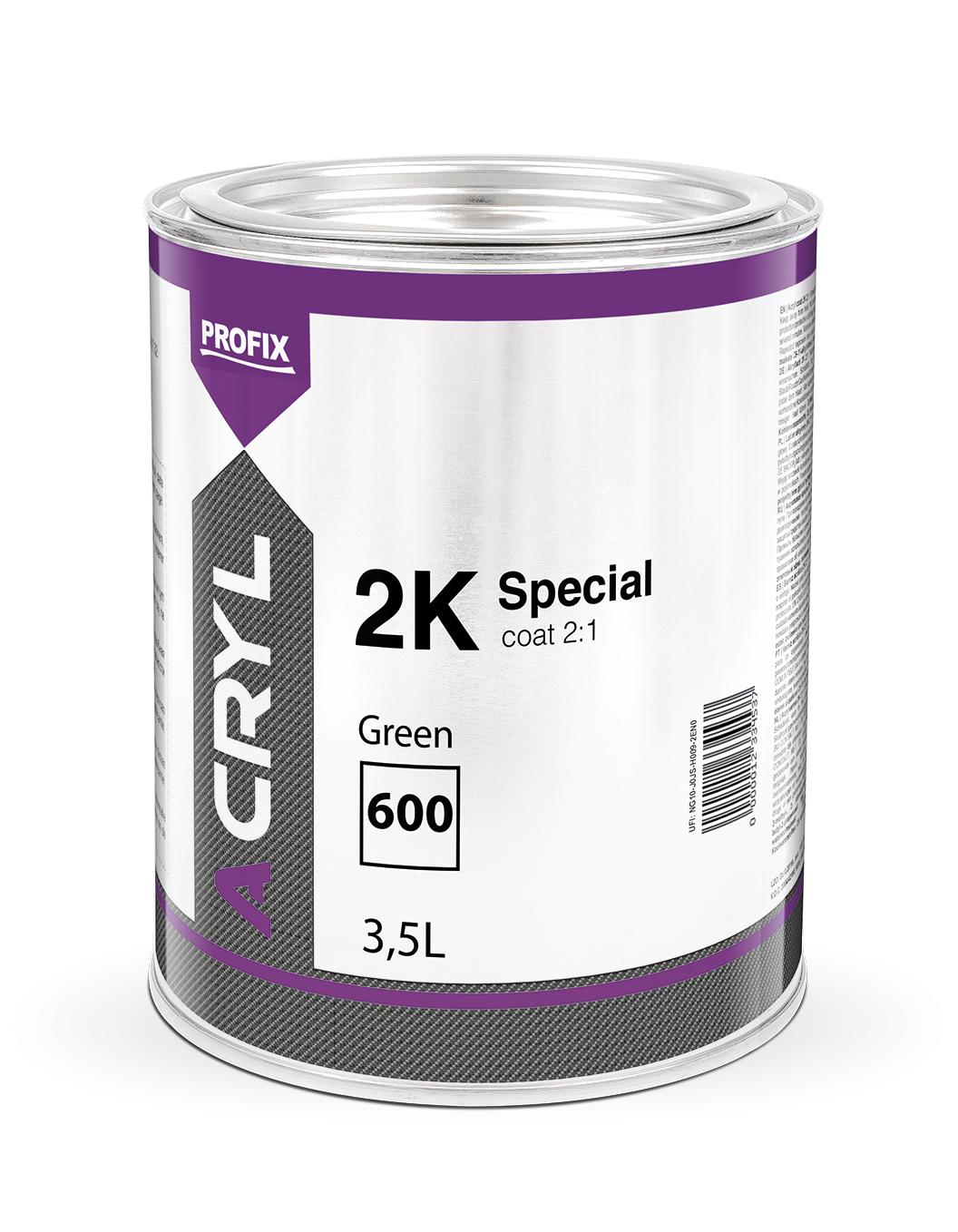

600

600 - Green

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
508

508 - Blue

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
404

404 - Purple red

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
402

402 - Maroon

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
303

303 - Red

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
302

302 - Lead free orange

  • Performance: 8 m2/l
  • Spill: 1.00 l
  • Available colors:
301

301 - Lead free transparent orange

  • Performance: 8 m2/l
  • Spill: 1.00 l
  • Available colors:
230

230 - Lead free transparent yellow

  • Performance: 8 m2/l
  • Spill: 1.00 l
  • Available colors:
225

225 - Lead free yellow

  • Performance: 8 m2/l
  • Spill: 1.00 l
  • Available colors:
203

203 - Oxide yellow

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
201

201 - Lead free yellow-orange

  • Performance: 8 m2/l
  • Spill: 1.00 l
  • Available colors:
101

101 - Super white

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:
100

100 - White

  • Performance: 8 m2/l
  • Spill: 3.50 l
  • Available colors:

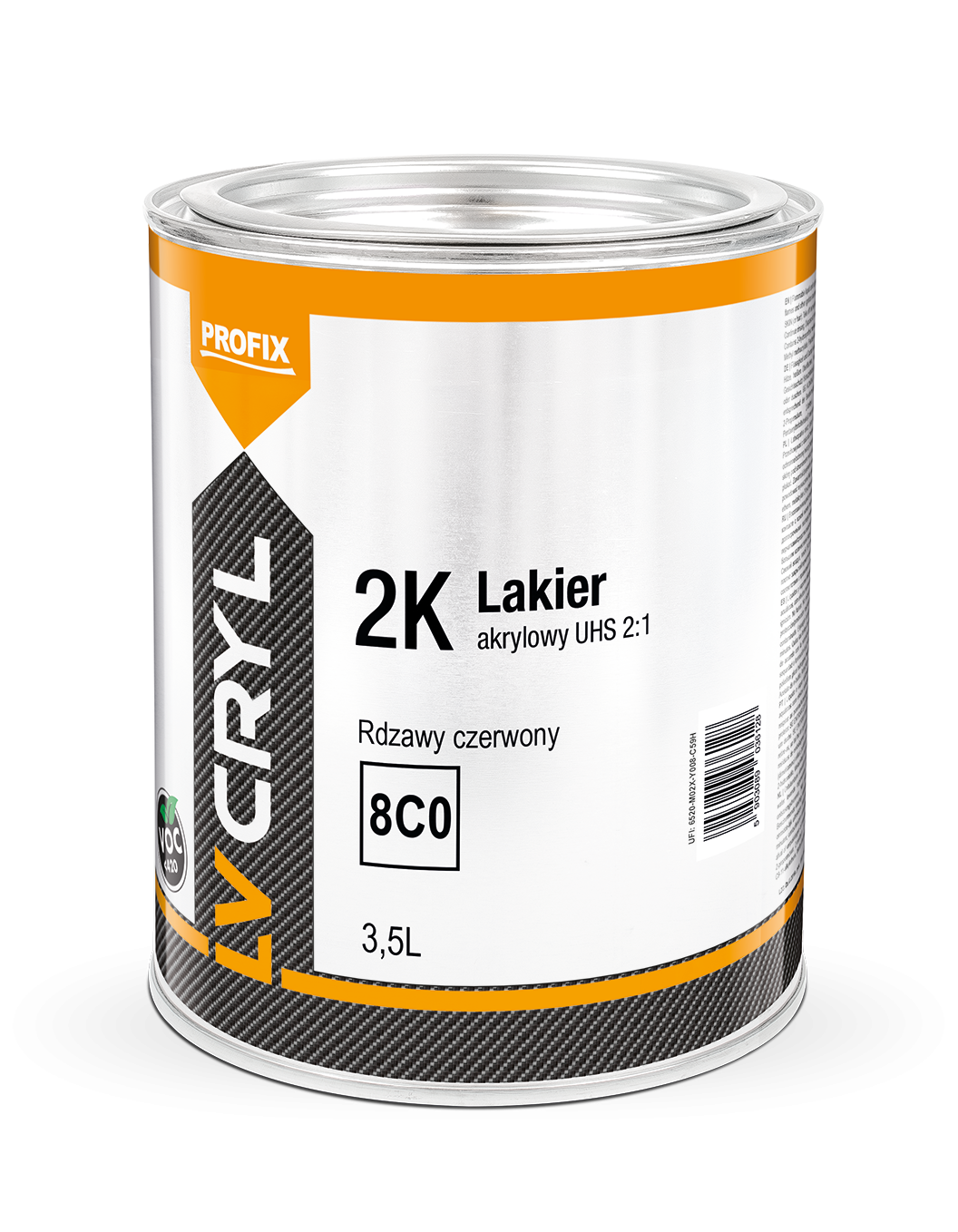

8C0

8C0 - Oxide red

  • Performance: 9 m2/l
  • Spill: 3.50 l
  • Available colors:
7C5

7C5 - Extreme black

  • Performance: 9 m2/l
  • Spill: 3.50 l
  • Available colors:
7C3

7C3 - Mix black

  • Performance: 9 m2/l
  • Spill: 3.50 l
  • Available colors:
7C2

7C2 - Mix black

  • Performance: 9 m2/l
  • Spill: 3.50 l
  • Available colors:
7C0

7C0 - Jet black

  • Performance: 9 m2/l
  • Spill: 3.50 l
  • Available colors:
6C6

6C6 - Transparent yellow green

  • Performance: 9 m2/l
  • Spill: 1.00 l
  • Available colors:

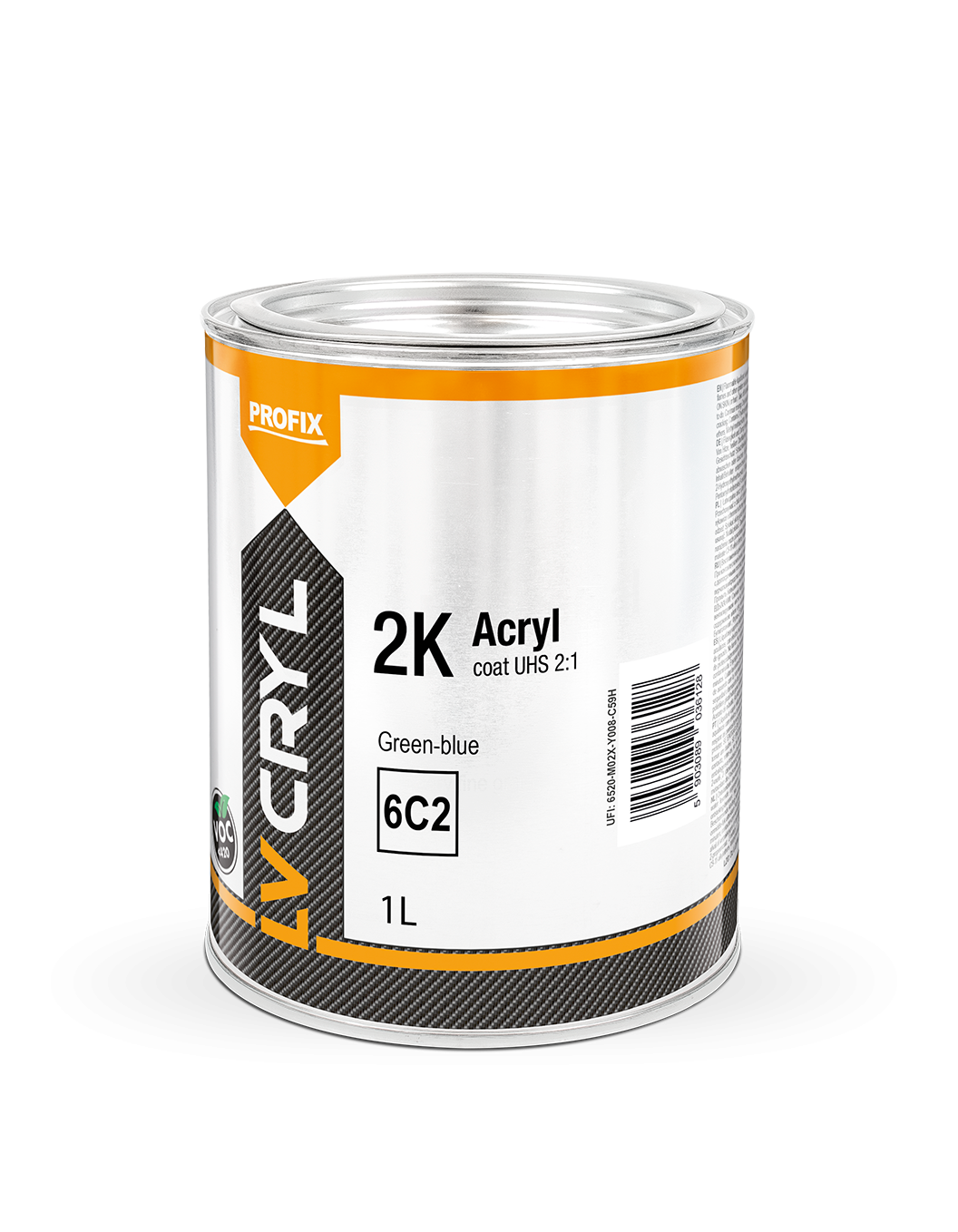

6C2

6C2 - Green-blue

  • Performance: 9 m2/l
  • Spill: 1.00 l
  • Available colors:

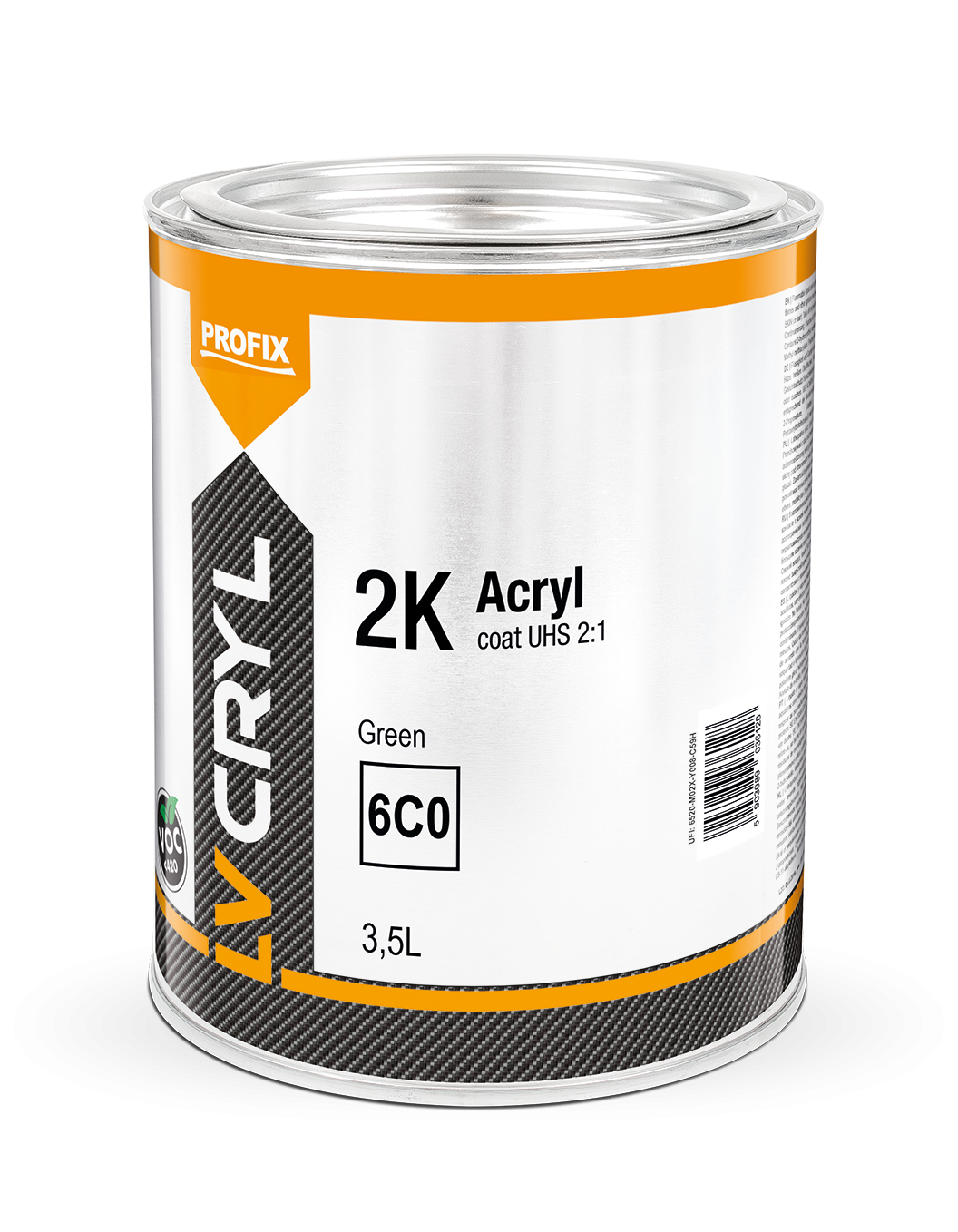

6C0
